| Brand Name : | Menual Brand |
| Model Number : | I9L |
| Certification : | ISO9001 |

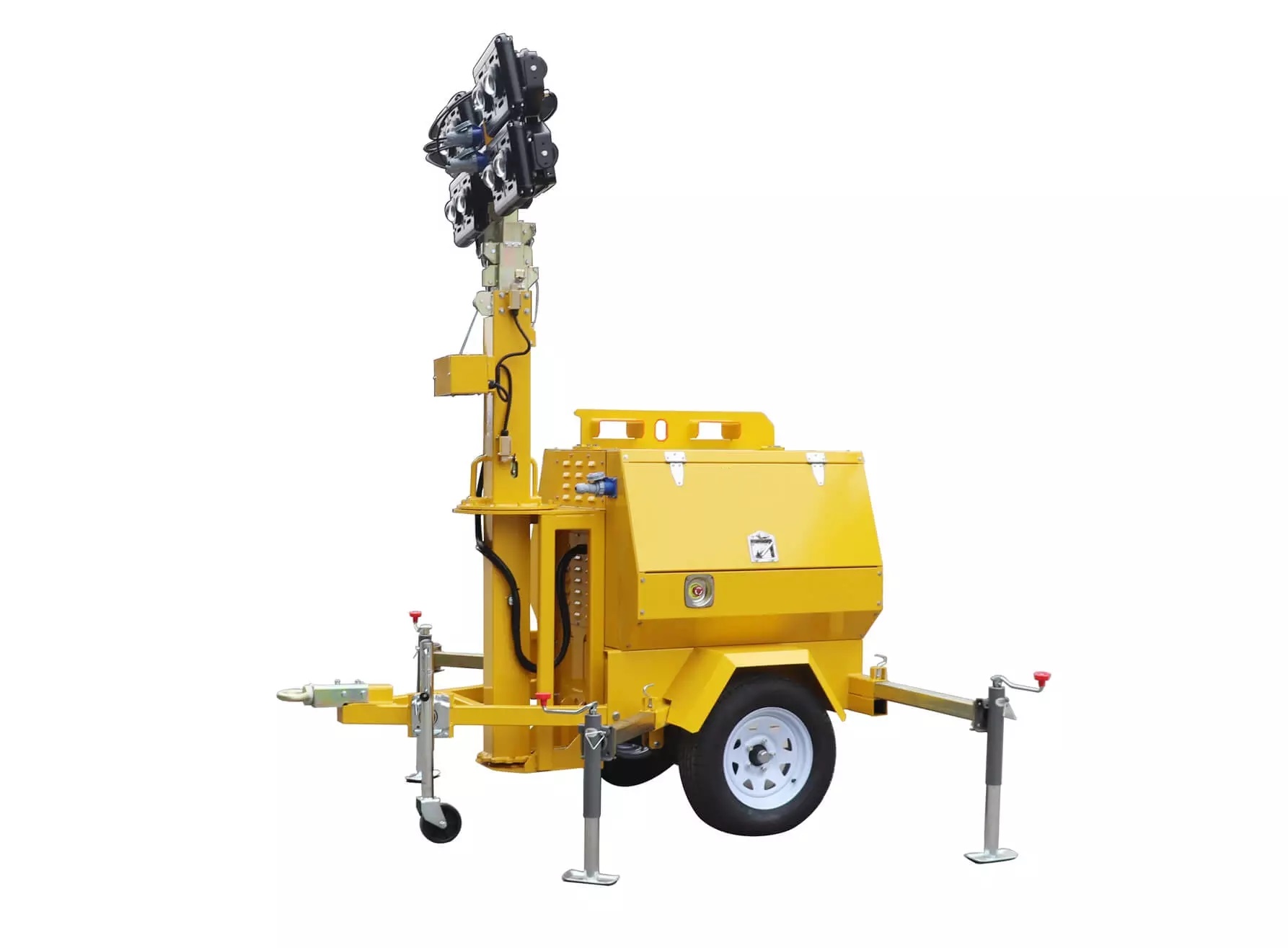

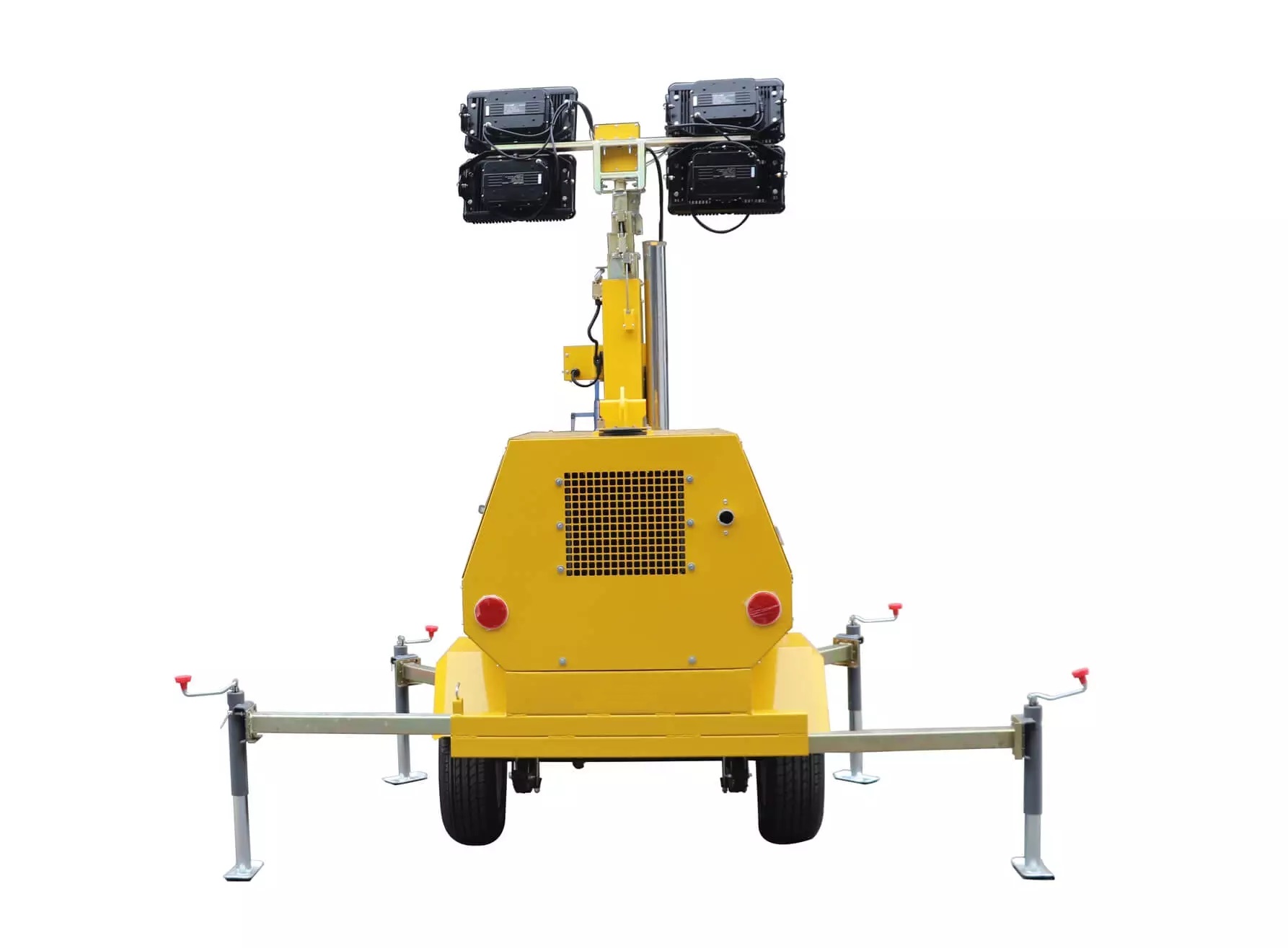

| Basic Model | i9L1200 | |
| Dimensions | Length | 2300mm |
| Width | 1360mm | |
| Height | 2900mm | |
| Loading container Height | 2480mm | |
| Full extending Height | 9m | |
| Genset power(1500/1800rpm-KW) | 3/3.5 | |
| Gross weight | 810kg | |
| Engine | Model | Z482 |
| Speed(rpm) | 1500/1800 | |
| Number of cylinders | 2 | |
| Engine characters | 4 cycles, Water-cooled diesel | |
| Combustion System | Direct injection | |
| Engine aspiration | Naturally aspirated | |
| Emission level (50Hz) | Regular | |
| Alternator | Model | Mecc alte LT3N-75/4 |
| Frequency (HZ) | 50/60 | |
| Rating voltage ( 50Hz) | 220/110V (50HZ), 240/120 (60HZ) AC | |
| Alternator insulation | Class H | |
| Alternator protection grade | IP23 | |
| Mast & Lights | Type of Lights | LED Light |
| Light's fixture | Rectagle | |
| Luminous flux | 132000(4*33000) | |
| Number & power of lights | 4×300W | |
| Number of mast sections | 6 | |
| Mast extension | Electrical(Vertical, 3500 lb winch) | |
| Mast rotation | 359° Manual rotation with self locking | |
| Light tilt | Manually | |
| Trailer | Trailer suspension & axle with brakes | Leaf springs axle without brake |
| Tow bar | A style frame with a supporting jack | |
| Stabilizing legs & number | 4 pcs drawable bar with manual jacks | |
| Wheel's rim size & tires | 14" rim with regular tires | |
| Tow adapter | 2" ball coupler or 3" pintle ring | |
| Tail lights | Complex tail lights | |
| Max towing speed | 100km/h | |
| Additional Features | Fuel tank Type | Rotational moulding plastic |
| Fuel tank capacity | 76 liters | |
| Operating hours with full load | 59 /53 hours | |
| Generator starting type or controler | HGM1780(SMARTGEN) | |
| Power outlet sockets | 1 | |
| Max. against wind when fully extended | 17.5 m/s | |
| Acoustic pressure | 77dB(A) at 7 meters away | |
| Max. # of units loading in 40' high container (Some components would be detached) | 9 | |
|
|
