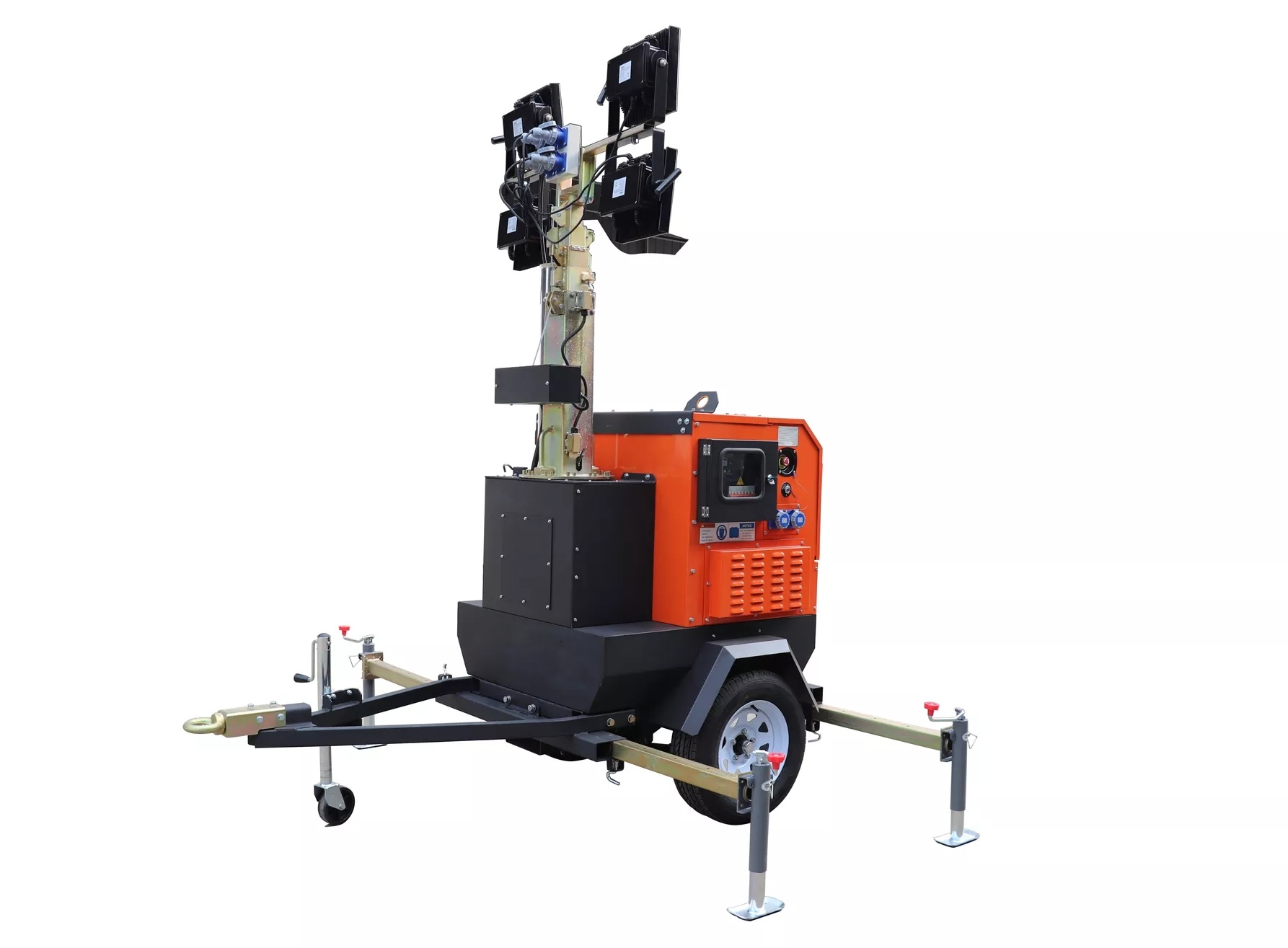

• Electric lifting mast, 9m high
• compact design, 16 units/40HC, Less dismantled part during the shipment
• Kubota engine from Japan and Mecc alte alternator from Italy
• high quality superluminescent metal halida lamps

• Basic Model		I9T4000
  Dimensions	Length	2420mm
  	Width	1360mm
  	Height	3050mm
  	Loading container Height	2600
  	Full extending Height	9m
  	Genset power(1500/1800rpm-KW)	6.5/7.5
  	Gross weight	850kg
  Engine	Model	D1105(Kubota)
  	Speed(rpm)	1500/1800
  	Number of cylinders	3
  	Engine characters	4 cycles, Water-cooled diesel
  	Combustion System	E-TVS
  	Engine aspiration	Naturally aspirated
  	Emission level (60Hz)	Regular
  Alternator	Model	Mecc alte LT3N-130/4
  	Frequency (HZ)	50/60
  	Rating voltage ( 50Hz)	220/110V (50HZ), 240/120 (60HZ) AC
  	Alternator insulation	Class H
  	Alternator protection grade	IP23
  Mast & Lights	Type of Lights	Regular metal halide
  	Light's fixture	Oval
  	Luminous flux (LM)	110000 LM/light
  	Number & power of lights	4×1000W
  	Number of mast sections	6
  	Mast extension	Electrical(Vertical, 3500 lb winch)
  	Mast rotation	359° Manual rotation with self locking
  	Light tilt	Manually
  Trailer	Trailer suspension & axle with brakes	Leaf springs axle without brake
  	Tow bar	A style frame with a supporting jack
  	Stabilizing legs & number	4 pcs drawable bar with manual jacks
  	Wheel's rim size & tires	14" Sunraysia rim with regular tires
  	Tow adapter	2" ball coupler or 3" pintle ring
  	Tail lights	Complex tail lights
  	Max towing speed	80km/h
  Additional Features	Fuel tank Type	Rotational moulding plastic
  	Fuel tank capacity	68 liters
  	Operating hours with full load	28/23 hours
  	Generator starting type or controler	HGM1780(SMARTGEN)
  	Power outlet sockets	1 unit of Euro standard 16A/220V single phase power outlet socket
  	Max. against wind when fully extended	17.5m/s
  	Acoustic pressure	72dB(A) at 7 meters away
  	Max. # of units loading in 40' high container (Some components would be detached)	16
